Manufacturing 180mm 220V 3000 Rpm 3 Times Instantaneous Servo Motor

Home / Product / Servo Motor / G3 Series 180mm 220V 3000 Rpm 3 Times Instantaneous Torque Servo Motor

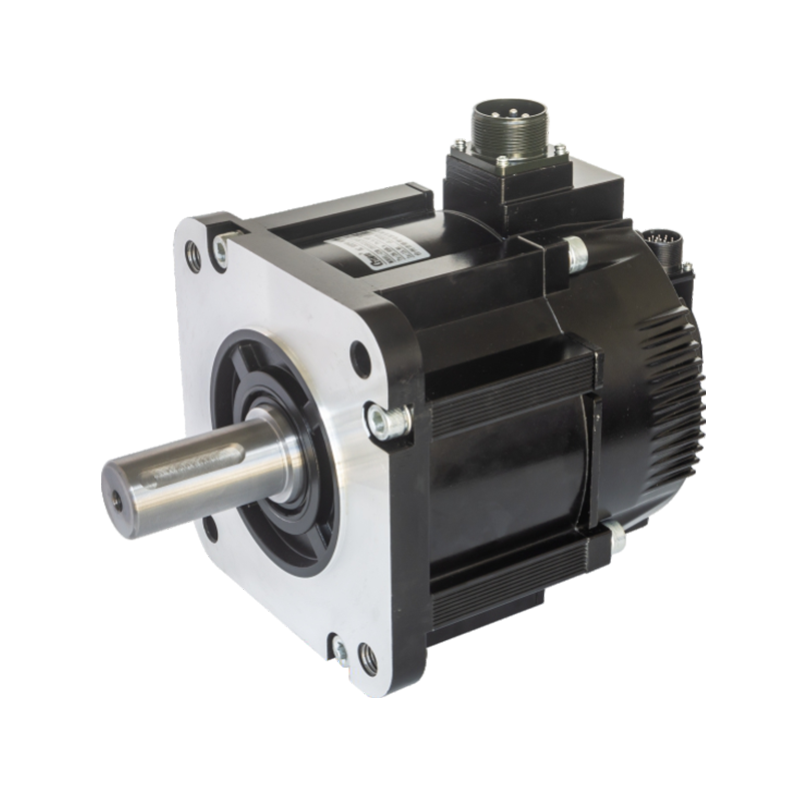

G3 Series 180mm 220V 3000 Rpm 3 Times Instantaneous Torque Servo Motor

G3 Series 180mm 220V 3000 Rpm 3 Times Instantaneous Torque Servo Motor

SG3 series 180mm 220V 3000 rpm 3 times instantaneous torque servo motor is a high power, high speed, high instantaneous torque motor. The advantages and characteristics of our product are as follows:
1. High power: The servo motor can provide high-efficiency driving force to meet the needs of high-load, high-speed motion control applications.
2. High speed: The speed of this series of servo motors reaches 3000 rpm, which can meet the requirements of high-speed motion control.
3.3 times the instantaneous torque: The servo motor has 3 times the instantaneous torque, that is, it can provide a driving force 3 times the rated torque in a short time, and can adapt to the working conditions of high load and sudden burst.
4. High-precision control system: G3 series servo motors adopt a high-precision control system, which can realize precise speed, position and torque control, and is suitable for high-precision and high-stability motion control applications.
5. High reliability and durability: The servo motor adopts high-quality electrical components and mechanical components, which has high reliability and durability, and is suitable for applications with harsh working conditions and large load changes.
GETE G3 series 180mm 220V 3000 rpm 3 times instantaneous torque servo motor is a high-performance, high-precision, high-reliability motor, suitable for various high-load, high-speed, high-precision, high instantaneous torque, high stability industrial automation control System needs.
Contact Us
  • Technical Parameters
  • NT Characteristics
  • Dimensions
  • Motor model
    Unit
    G3M-18300C2□QA
    G3M-18300C3□GA
    G3M-18450C2□QA
    G3M-18450C3□QA
    G3M-18550C2□QA
    G3M-18550C3□QA
    G3M-18750C2□QA
    G3M-18750C3□QA
    Rated power
    W
    3000
    3000
    4500
    4500
    5500
    5500
    7500
    7500
    Rated voltage
    V
    220
    380
    220
    380
    220
    380
    220
    380
    Rated current
    Arms
    11.0
    11.6
    15.9
    16.6
    20.2
    21.4
    25.8
    26.7
    Instantaneous maximum current
    Arms
    37.4
    38.2
    51.7
    53.8
    64.6
    66.8
    82.5
    85.2
    Rated torque
    N.m
    19.1
    19.1
    28.65
    28.65
    35.0
    35.0
    47.76
    47.76
    Instantaneous maximum torque
    N.m
    57.3
    57.3
    85.95
    85.95
    105.0
    105.0
    143.3
    143.3
    Rated speed
    rpm
    1500
    1500
    1500
    1500
    1500
    1500
    1500
    1500
    Maximum speed
    rpm
    2000
    3500
    2000
    3500
    2000
    3500
    2000
    3500
    Back EMF
    V/Krpm
    103
    105
    102
    111
    Torque constant
    N.m/A
    1.74
    1.65
    1.8
    1.73
    1.73
    1.64
    1.85
    1.79
    Wire resistance
    Ohm
    0.67
    0.35
    0.25
    0.18
    Line inductance
    mH
    10.2
    6.6
    4.3
    3.6
    Electrical time constant
    ms
    15.22
    18.86
    17.2
    20.0
    Rotor inertia

    X10-4kg·m2

    47.2
    69.3
    94.1
    135.6
    With brake 58.2
    With brake 80.3
    With brake 105.1
    With brake 146.6
    Quality
    kg
    12.9
    16.6
    21.1
    28.4
    With brake 17.2
    With brake 20.9
    With brake 25.4
    With brake 32.7
    Fuselage length L
    mm
    156
    180
    205
    250
    With brake 193
    With brake 217
    With brake 242
    With brake 287
    Brake static friction torque
    N.m
    Over 48
    Rated voltage
    V
    DC24V±2.4
    Rated current
    A
    1.0
    Attract time
    ms
    Below 200
    Release time
    ms
    Below 100
    Release voltage
    V
    1 or more
    Number of poles
    10
    Encoder resolution
    17bit/23bit/25bit
    Insulation class
    F
    Degree of protection
    IP65
    Use environment
    Temperature: -20℃～+40℃ (no freezing) Humidity: <90%RH (no condensation)
    Power line and brake line
    VU    W  PE
    BRK+    BRK-
     2  1  3  4
    1            2
    Absolute encoder line
    /     E-   E+   SD-   OV   SD+   5V      /    /    PE
    1     2     3      4      5      6         7      8   9    10

About Gete

Get to know us now

Taizhou Gete Motor Co., Ltd. is a high quality G3 Series 180mm 220V 3000 Rpm 3 Times Instantaneous Torque Servo Motor supplier and wholesale company. The company has strong scientific and technological strength, advanced design concepts, advanced production facilities, high-precision testing equipment, and perfect modern management. The company is developing steadily and focusing on the accumulation of independent intellectual property rights, which are currently used for 12 utility model patents.
The high-tech products developed and produced by our company: 5 pairs of pole servo motors, high-speed servo motors, ultra-high-resolution servo motors, multi-environment servo motors, etc. will bring new vigor and vitality to industrial automation. Products are widely used in CNC machine tools, embroidery, engraving, textile, printing, packaging and other manufacturing industries, aviation industry, new energy automobile industry and other robotics and other automation industrial control fields. The company adheres to the business philosophy of "pragmatic innovation, honesty and trustworthiness, and excellence", and continues to create and change infinitely as always.

Related ProductsAdd our products to weekly lineup

More Information About G3 Series 180mm 220V 3000 Rpm 3 Times Instantaneous Torque Servo Motor

Our 180mm 220V 3000 Servo Motor is not just a motor; it's a technological marvel that redefines what's possible in motion control. We'll dive into the exceptional features that make this servo motor a standout, with a particular focus on its groundbreaking RPM 3 Times Instantaneous Torque capability.

Key Features:

1. 180mm 220V 3000 Servo Motor:

The centerpiece of this servo motor is its robust 180mm frame size, offering an ideal blend of size and performance. Operating at 220V, it provides the reliability and stability necessary for precision motion control applications, making it a versatile solution across industries.

2. RPM 3 Times Instantaneous Torque:

What sets this servo motor apart is its extraordinary RPM 3 Times Instantaneous Torque capability. This revolutionary feature allows the motor to deliver a burst of torque three times its rated value for short durations. This instantaneous surge in torque enables rapid acceleration and dynamic performance, making it a game-changer for applications that demand high-speed, high-torque bursts.

3. Torque Servo Motor:

Our Torque Servo Motor is designed with the singular focus of delivering precise torque control. Whether you're involved in applications such as robotics, heavy machinery, or any task where torque accuracy is paramount, this motor is your dependable partner in achieving consistent and controlled torque output.

4. Exceptional RPM Performance:

Beyond its unique RPM 3 Times Instantaneous Torque capability, this servo motor boasts an impressive standard RPM of 3000 (Rotations Per Minute). This provides the versatility needed to meet a wide range of motion control requirements, from rapid positioning to continuous rotation.

5. Wide Range of Applications:

Thanks to its combination of torque precision, RPM versatility, and RPM 3 Times Instantaneous Torque capability, this servo motor finds applications across diverse industries. Whether you're engaged in robotics, CNC machining, conveyor systems, or any field where precision and power are paramount, this motor is engineered to excel.

6. Precision Control:

Equipped with advanced servo control technology, this motor enables precise control of torque and speed. Its ability to maintain accuracy under varying loads and conditions ensures that your machinery operates with unmatched precision and reliability.

7. Robust and Reliable:

The design of this servo motor is built around durability and longevity. Its rugged construction empowers it to operate reliably even in the most demanding environments, providing you with uninterrupted performance when you need it most.

8. Easy Integration:

Recognizing the importance of seamless integration, we have equipped this servo motor with various mounting options and connectors. These features simplify the installation process, ensuring a hassle-free incorporation into your existing systems.

Experience the Future of Motion Control:

The 180mm 220V 3000 Servo Motor with RPM 3 Times Instantaneous Torque capability is more than just a motor; it's a breakthrough in motion control technology. Whether you're involved in precision automation, high-speed robotics, or any application where torque and speed matter, this motor empowers you to achieve exceptional results with confidence.

Welcome to the future of motion control, where precision, power, and innovation converge to elevate your applications to new heights. Reach out to us today to explore how this servo motor, with its RPM 3 Times Instantaneous Torque capability, can be tailored to meet your unique motion control needs, and embark on a journey toward enhanced efficiency and success.
